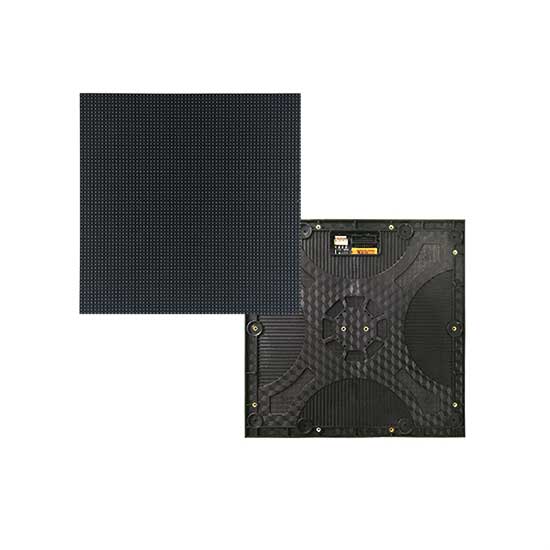

| Indoor P3.91 SMD Full Color LED Module |
| Technical parameters |
| Pixel Pitch | 3.91 mm |
| Module Size | 250 × 250mm |
| Resolution | 64 × 64=4096 dots |
| Pixels Density | 65536 dots/m |
| LED Lamp | SMD 2121/black |
| Brightness | 800 cd/sqm |
| Driving Mode | 1/16 S |
| Weight | 0.520 kg |
| Thickness | 15.5 mm |
| View Angle | H: 120°± 20° ；V: 120°± 20° |
| Driving IC | MBI5124/ ICN2037 |
| Refresh Rate | ≥1920 hz |
| Grey Scale | 65536 |
| Service Life | 100000 hrs |
| Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
| Control System | Nova/Linsn/ColorLight/HD/Onbox etc. |
| Regular Cabinet | 1000/500× 500 mm /8.0/12.5 kg |
| Cabinet Resolution | 256/128 × 128 dots/cabinet |
| Consumption | Max:550 w/sqm ； Average:280 w/sqm |
| Working/input voltage | 200/110-240V |
