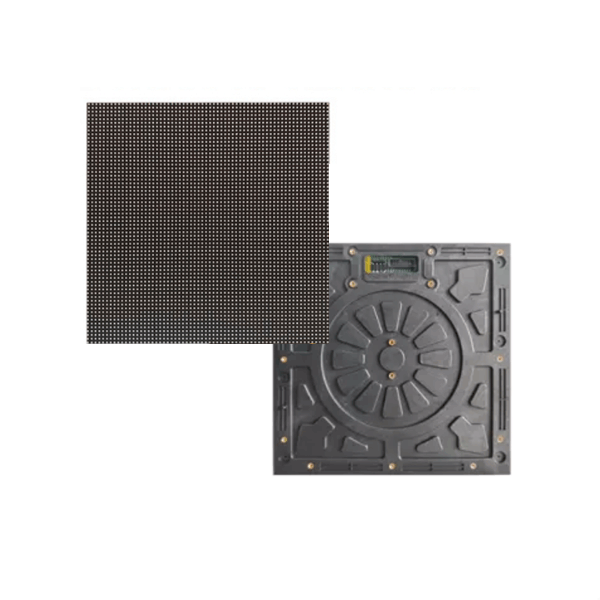

| Indoor P4.81 SMD Full Color LED Module |
| Technical parameters |
| Pixel Pitch | 4.81 mm |
| Module Size | 250 × 250mm |
| Resolution | 52 × 52=2704 dots |
| Pixels Density | 43222 dots/m |
| LED Lamp | SMD 2121/black |
| Brightness | 800 cd/sqm |
| Driving Mode | 1/13 S |
| Weight | 0.490 kg |
| Thickness | 15.5 mm |
| View Angle | H: 120°± 20° ；V: 120°± 20° |
| Driving IC | MBI5124/ ICN2037 |
| Refresh Rate | ≥1920 hz |
| Grey Scale | 65536 |
| Service Life | 100000 hrs |
| Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
| Control System | Nova/Linsn/ColorLight/HD/Onbox etc. |
| Regular Cabinet | 1000/500× 500 mm /7.0/12 kg |
| Cabinet Resolution | 208/104 × 104 dots/cabinet |
| Consumption | Max:490 w/sqm ； Average:250 w/sqm |
| Working/input voltage | 200/110-240V |
