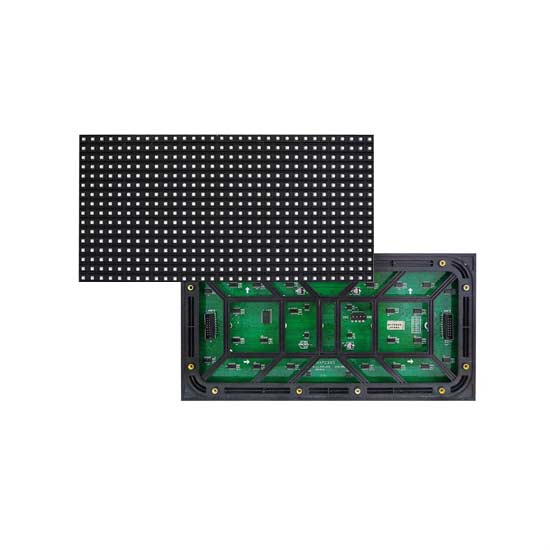

| Outdoor P10 SMD Full Color LED Module |
| Technical parameters |
| Pixel Pitch | 10 mm |
| Module Size | 320 × 160mm |
| Resolution | 32 × 16 = 512 dots |
| Pixels Density | 10000 dots/m |
| LED Lamp | SMD 3535 |
| Brightness | 6500 cd/sqm |
| Driving Mode | 1/2 S |
| Weight | 0.460 kg |
| Thickness | 18 mm |
| View Angle | H: 120°± 20° ；V: 120°± 20° |
| Driving IC | MBI5124/ ICN2038S |
| Refresh Rate | ≥1920 hz |
| Grey Scale | 65536 |
| Service Life | 100000 hrs |
| Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
| Control System | Nova/Linsn/ColorLight/HD/Onbox etc. |
| Regular Cabinet | 960 × 960 mm /33kg |
| Cabinet Resolution | 96 × 96dots/cabinet |
| Consumption | Max:750 w/sqm ； Average:350 w/sqm |
| Working/input voltage | 200/110-240V |
