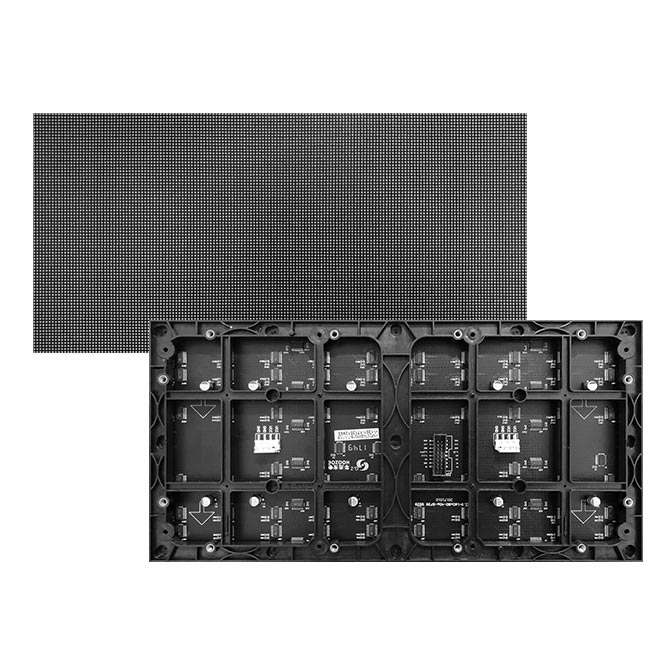

| Indoor P2.0 SMD Full Color LED Module |
| Technical parameters |
| Pixel Pitch | 2.0 mm |
| Module Size | 320 × 160 mm |
| Resolution | 160 × 80=12800 dots |
| Pixels Density | 250000 dots/m |
| LED Lamp | SMD 1515/black |
| Brightness | 800 cd/sqm |
| Driving Mode | 1/32 S |
| Weight | 0.385 kg |
| Thickness | 12.5 mm |
| View Angle | H: 130°± 20° ；V: 130°± 20° |
| Driving IC | MBI5153 / ICN2153 |
| Refresh Rate | ≥3840 hz |
| Grey Scale | 65536 |
| Service Life | 100000 hrs |
| Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
| Control System | Nova/Linsn/ColorLight/HD/Onbox etc. |
| Regular Cabinet | 640 × 480 mm /7.0kg |
| Cabinet Resolution | 320 × 240 dots/cabinet |
| Consumption | Max:490 w/sqm ； Average:220 w/sqm |
| Working/input voltage | 200/110-240V |
